Pulley Systems: A Comprehensive Guide

Mô tả sản phẩm

A pulley is a wheel with a grooved rim around which a rope, cable, or belt passes. Pulley systems are used to lift or move heavy objects with less effort. They work by changing the direction of the force and/or multiplying the force applied.

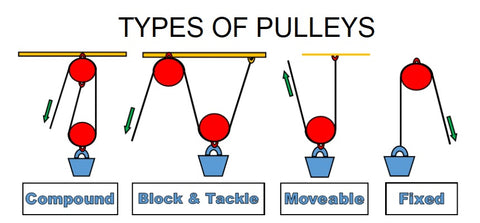

Types of Pulley Systems

Fixed Pulley:

A fixed pulley changes the direction of the force, making it easier to lift an object, but it doesn't multiply the force. You still need to exert the same amount of force as the weight of the object.

Movable Pulley:

A movable pulley multiplies the force. It requires half the effort to lift the same weight, but the rope needs to be pulled twice the distance.

Compound Pulley Systems:

These systems combine fixed and movable pulleys to achieve a greater mechanical advantage. The more pulleys in the system, the less force is needed to lift a heavy object, but the rope must be pulled a proportionally longer distance.

Mechanical Advantage of Pulley Systems

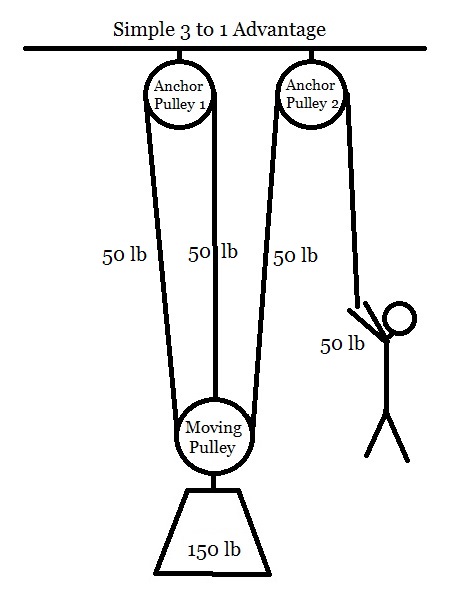

The mechanical advantage (MA) of a pulley system is the ratio of the output force (the weight lifted) to the input force (the force applied). It's a measure of how much the system multiplies the force. In an ideal scenario (without friction), the MA is equal to the number of supporting ropes. However, in real-world applications, friction reduces the actual mechanical advantage.

Applications of Pulley Systems

Pulley systems have a wide range of applications, including:

• Construction: Lifting heavy building materials
• Manufacturing: Moving heavy machinery and parts
• Shipping: Loading and unloading cargo
• Agriculture: Lifting and moving heavy equipment
• Everyday life: Simple tasks like hoisting flags or raising blinds.

Factors Affecting Pulley System Efficiency

• Friction: Friction in the pulley system reduces efficiency.
• Rope stretch: Stretching of the rope reduces the actual mechanical advantage.
• Weight of the pulley: The weight of the pulleys themselves contributes to the load.

Understanding pulley systems and their mechanical advantages is crucial in various fields requiring efficient lifting and movement of heavy objects. Choosing the appropriate pulley system depends on the weight of the object to be lifted and the available force.
